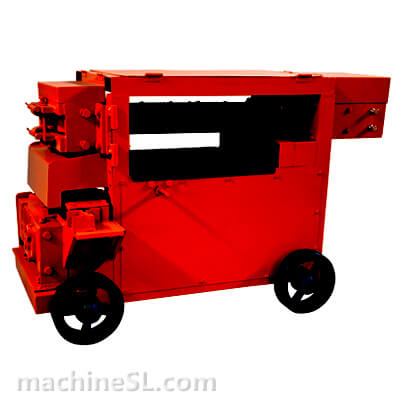

MY5-12 Steel Bar Straightener [5mm-12mm; Length＞80cm]

Machine ModelMY5-12
Round bar5~12mm
Rebar5~10mm
Speed≥35m/min
Power5.5KW
GW/NW360Kg/330Kg
Dimension118*65*78cm

Product Descriptions

  • Machine Video

  • Our Company Overview

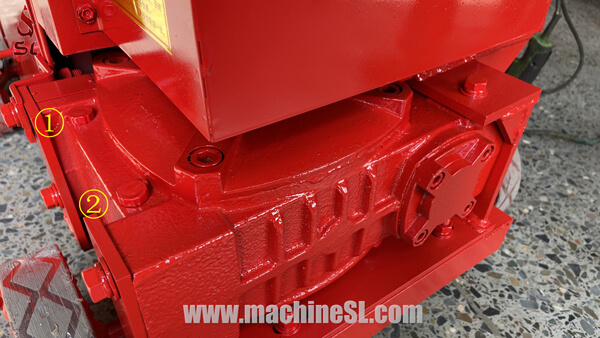

  • Reduction Box

reduce gear box
  • ① and ② are Machine Oil filling port, 5 Kg Machine Oil filling before running the machine

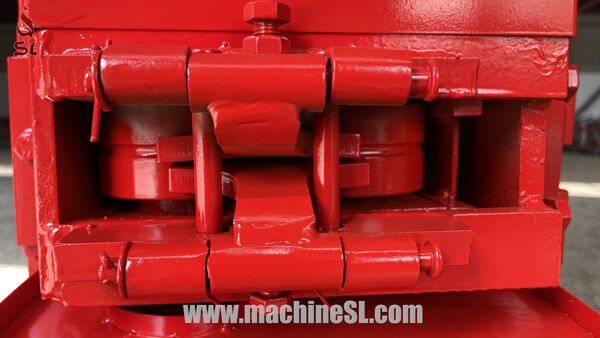

  • Input Port

input port
  • Input rebar into the hole

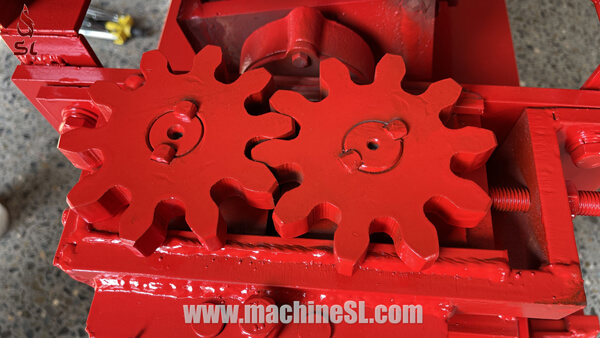

  • Gears Inside Input Port

gears inside input port
  • It’s used for pulling rebar into machine, Lubricating oil is needed time to time, make sure it’s in lubrication

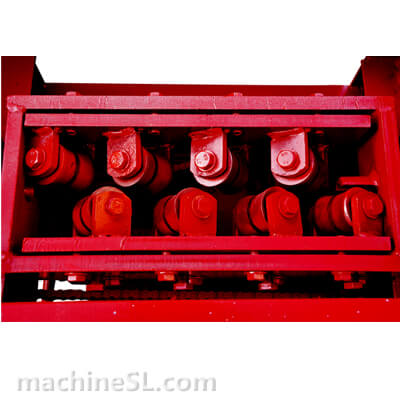

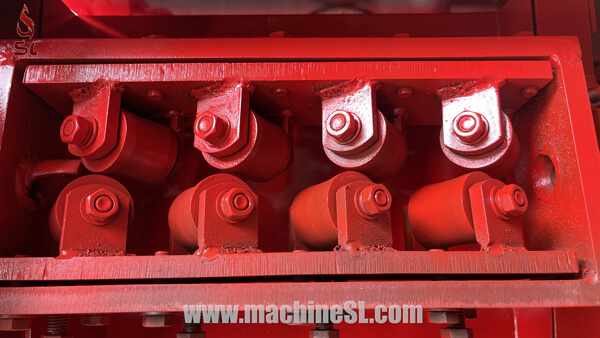

  • Straightening Die & Rollers

straightening die rollers
  • It will rotate in high speed to straighten rebar which pass through

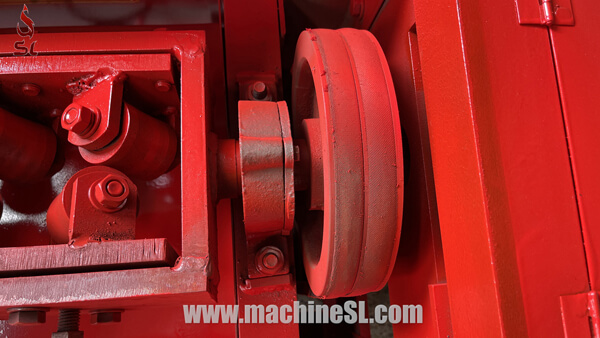

  • Belt Pulley

belt pulley
  • Belt pulley supply power to straightening die & roller

  • Adjustment Bolts For Rollers

bolts for adjusting straightening rollers
  • The bolts used for adjusting rollers to adapt different sizes rebar

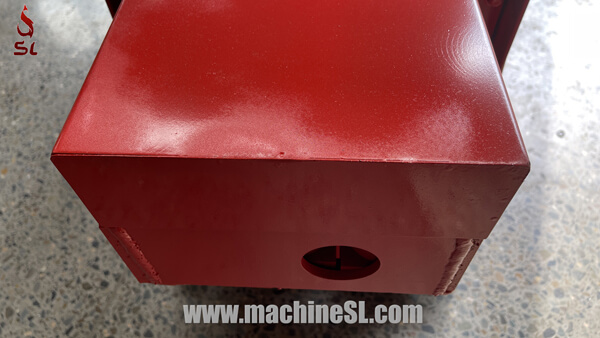

  • Output Port

output port
  • Rebar will come out through the hole

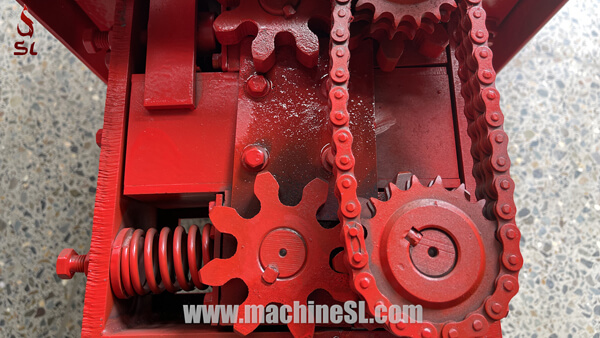

  • Gears Inside Output Port

gears and Chain inside output port
  • It’s used for pulling rebar out, Lubricating oil is needed time to time, make sure it’s in lubrication

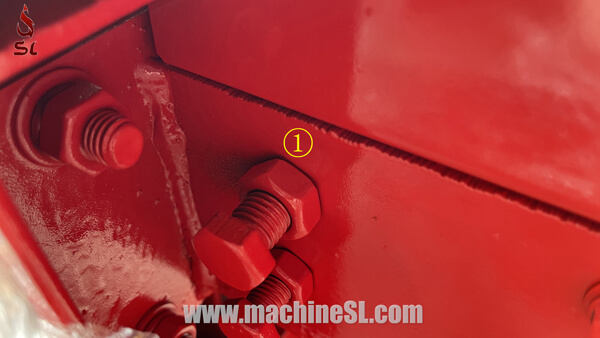

  • Adjustment Bolt Output Port

bolt for traction on output port
  • ① bolt is used for adjusting traction gears

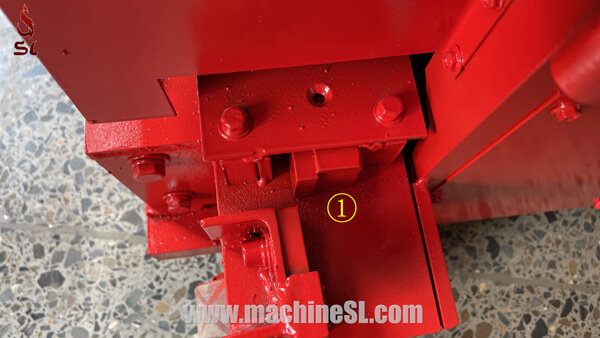

  • Cutter

cutter
  • ① is the cutter used for cutting off curved & twist stub

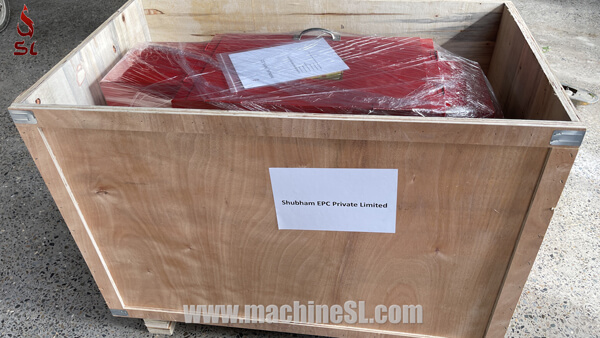

  • The Package

package
  • Strong for shipping,

  • Orders Delivery
