GW40-4 Automatic Bar Bending Machine (Pin Indexing Mode)

Machine ModelGW40-4
Round bar4~40mm
Rebar4~32mm
Power3KW
Volatge220V,380V,415V etc…
GW/NW350Kg/320Kg
Dimension89*78*94CM

Product Descriptions

  • Machine Video

  • Our Company Overview

  • Work Table

table of rebar bending machine display
  • It has 72 indexing holes, spacing interval 5° angle degree
  • The “Oily Yellow” color is antirust paint, for prevent rust before using, the real color is “Silver Gray”

  • Pins For Indexing

pin indexing display
  • Noramlly, it uses 3pcs for cooperative combat
  • One for 90° angle degree, the second for 135° angle degree, the third for STOP

  • How To Use Pins

  • The first and second pins can be setted to any holes
  • The first set into any holes below 90° (included) angle degree, the second set into any holes above 135° (included) angle degree

  • Frequently-Used Reinforcement

angle degree display
  • Some frequently-used reinforcement in construction

  • Operation Panel

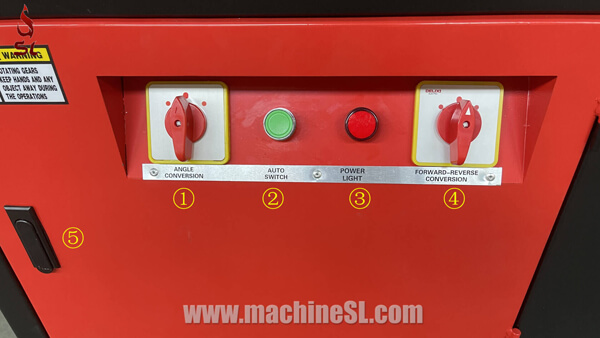

operation panel display
  • ① 90° angle degree(below) and 135° angle degree(above) switch
  • ② “Auto Function” button, turn it on, it will work on Pin Indexing function
  • ③ Power light, means machine is workable
  • ④ Reverse forward switch, with this switch, it not needs to change power lines connection
  • ⑤ Door lock handle

  • Buttons

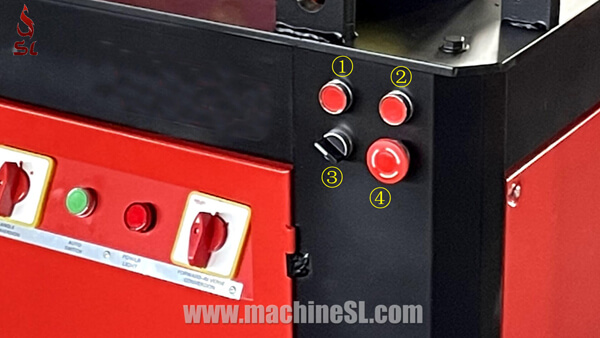

operation buttons display
  • ① and ② are Reverse & Forward buttons, work under “Manual” function status
  • ③ Auto & Manual function switch, this machine can be used as automatic(pins indexing) and manual
  • ④  Scram button; EMERGENCY STOP

  • Interior

electric motor driving unit
  • Powerful electric motor with cooper coiled core, supply steady and lasting power
  • 4pcs V- belts transmission the power to gears

  • Gears

gears sets
  • High temperature quenching treatment, sturdy and durable
  • Heavy load for high torque force
  • Long service life, lower noise

  • Toolkits

toolkits box
  • Toolkits, fixed inside with the machine, hold bending accessories and foot switch

  • Bending Accessories

accessory for bending machine
  • The bending accessories satisfied any shapes requirements

  • Connection Points

connection point display
  • The blue port used for plugging in foot switch
  • The lines are power lines

  • Foot Switch

foot switch padel
  • It’s a wear well foot switch, with attractive appearance

  • The Package

package delivery
  • Angle iron frame with carton covers, avoiding solid wood problems
  • Strong for shipping,

  • Orders Delivery
