Importance of Soil Compaction in Construction [Avoid Mistakes]

Compaction is one of the construction tasks, that takes place practically on every construction project. Whether it is densifying soil beneath the slab on the ground or compressing the clay core of an earthen dam, you would be needing compaction.

Therefore, it is important that we understand how compaction works, what it really is, how we can do it and monitor its quality and what mistakes, we should avoid while doing it. You will find answer to all these question in this article.

soil compaction in construction

Compaction is defined as the process of increasing soil density by removing air voids. It is done by mechanical means.  Compaction should not be confused with consolidation, which is the increase in soil density because of exploitation of moisture content of the soil. It is a is a time dependent process controlled by the permeability of the soil.

compacted soil

Projects Where We Need Compaction

Soil compaction is important because it provides essential flat base for different types of project. Compaction provides stability and firm support to the construction, that are built above them. It also increases the shear strength of soil.

Compaction is frequently used on following projects:

  • Buildings (Foundations)
  • Highway (base, subbase, subgrade, embankments)
  • Pavements
  • Earth dams
  • Trenches and backfills

The Risks of Not Compacting

Skipping the compaction on sites, where it is essentially required can cause serious problems.

Over the time soil may settle down under the load due to reduced bearing capacity. Soil may also slide down allowing the water to pass underneath the surface of foundation.

This movement, of course, can cause damage to building foundations in the form of erosion and can also cause additional uplift pressure.

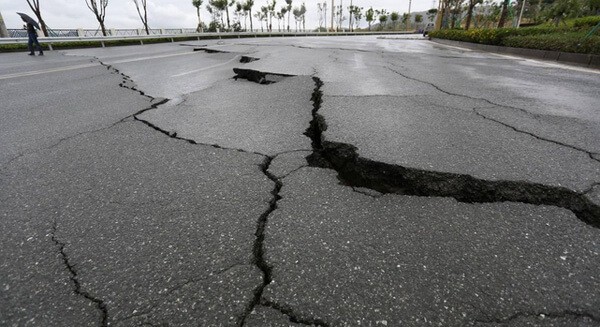

Ultimately this would lead to building settling down and can also collapse. Similarly, in roads, an improper compaction can result is settlements of pavements and cracking in the pipes underneath the road.

road subsidence

Compaction and Moisture Content

Moisture Content

Before explaining the relationship between compaction and moisture content, it is important to understand what moisture content really is. To define it in a single sentence, moisture content is the amount of water contained in soil.

soil Moisture content

Compaction and Moisture Content

In compaction, the main goal is to keep the soil particles as close as possible by removing air voids. This results in improved dry density of soil.

However, the maximum dry density in soil can only be achieved at a certain moisture content in soil, which is called optimum moisture content.

Hence compaction of soil depends on the relationship between its dry density and moisture content.

Optimum Moisture Content

When dry soil is compacted, the soil particles start to come close to each other and the soil becomes stiff and cracks and gaps are formed. These cracks are due to improper contact of dry soil particles.

If we add water to soil, the water will form a thin layer around the soil particles, which helps the particles to get in contact with each other properly. Hence soil becomes denser under compaction.

At a certain point, the volumes of air in soil become minimum and dry density would become maximum. This is called maximum dry density point. No more water should be added beyond this point and the moisture content of soil at this stage would be the optimum moisture content.

achieve optimum moisture content

Soil Compaction Measurement

Compaction in a soil can be measured by following techniques

  • Core tests
  • Sand replacement
  • Nuclear gauge

95% Compaction

On construction projects, you also test small soil samples in the laboratory taken from the site. From the test you get a value of maximum dry density. Let’s call it D.

Then you go to the construction sites and measure the compaction there. You also obtain a value of maximum dry density at site. It should not be less than the 90-95 % of the maximum dry density computed in laboratory (D).

Therefore 95% compaction means that soil is compacted up to 95 of the maximum dry weight possible (computed in laboratory as maximum dry density).

Different Types of Soil Compaction

Four different techniques are used to achieve compaction: Vibration, impact, kneading and applying pressure. These four techniques can use either static or vibratory force. Static force uses the weight of machine while vibratory force uses the mechanically driven force.

  • For topsoil layers, static techniques like kneading and pressure are well suited.
  • Deeper soils need dynamic techniques like vibratory and impact methods.
different types of soil compaction

Type of Machine Used For Compaction

The type of machines we can use for compaction depends on the types of soils, we are compacting and the site conditions. Soils are categorized into different types based on their grain sizes. As a result, these soils have different densities and moisture contents.

Soils can be grouped into following types:

Cohesive Soils

Soil particles stick together. High impact compaction is the best choice. Clay is a type of cohesive soil.

Granular Soils

Soil particles are bigger in size than the clay particles. These soils offer good drainage. Shaking or vibratory compaction technique is the best choice. Sand or gravel is a type of granular soil

Granular and Cohesive Soils

A combination of both types of soils (granular and cohesive). Most of the soil particles type (either granular or cohesive) determine the best strategy for their compaction.

Compaction Equipment

Following types of compaction equipment are available in market.

soil compaction equipment

Compaction Mistakes You Should Avoid

Two most common compaction mistakes you should avoid are over compaction and under compaction. They are usually the result of untrained or careless work.

Over Compaction

A general idea in our minds is that we can not over compact the soil. As we increase the compaction it will become more and stronger.

But this is not the case. Doing compaction beyond the need would cause the soil particles to break down. It will reduce its support capability due to the separation that happens within the soil mix. This will lead to weakness in soil, not strength.

To make it further clear, you can perceive it like this. Let’s suppose, you have a pile of small rocks and you try to hammer them down into small pieces. You can do it with the correct amount of force.

But, if you keep hammering them down beyond the size of rock you desire, you will end up having them in very small sizes particles like sand, which is completely different than what you wanted

Over compaction breaks down the materials to such extent that their composition is changed.

small sizes particles like sand

Under Compaction

Under compaction can happen as result of certain mistakes:

  • Not using large enough piece of equipment that can handle the job will result in under compaction.
  • Not making enough passes with the compactor may also result in under compaction.

Under compaction can cause uneven settlements. Since the soil is not compacted properly, it will not be able to bear the weight above it, which can lead to structural issues.
